HD Map Runtime Classes

4.1 HDMapAPI

The HD Map road network runtime currently provides APIs for the following functions: global query, localization, routing, traffic lights and signs, and parking spaces.

4.1.1 Basic Concepts

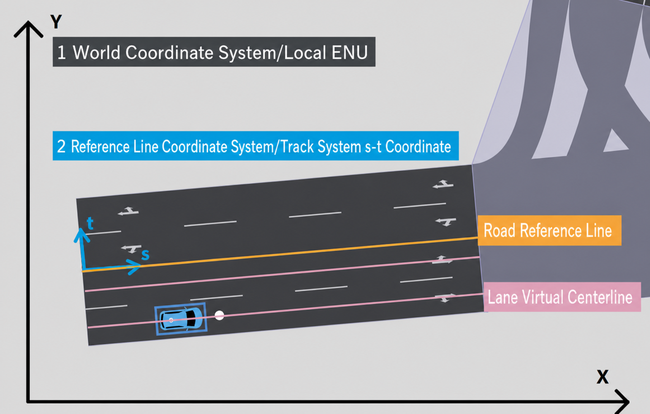

(1) Coordinate Systems: The HD Map system provides two coordinate systems: Local ENU and s-t.

A. World Coordinate System / Local ENU The world coordinate system uses a right-hand x, y, z coordinate system.

Conventionally used for geographic reference (Local ENU): x points East (E), y points North (N), z points Up (U).

B. Reference Line Coordinate System / Track System s-t Coordinate

The road network runtime defines two s-t coordinate systems based on different reference lines:

  • s-t coordinate system based on the road reference line

  • s-t coordinate system based on the lane virtual centerline

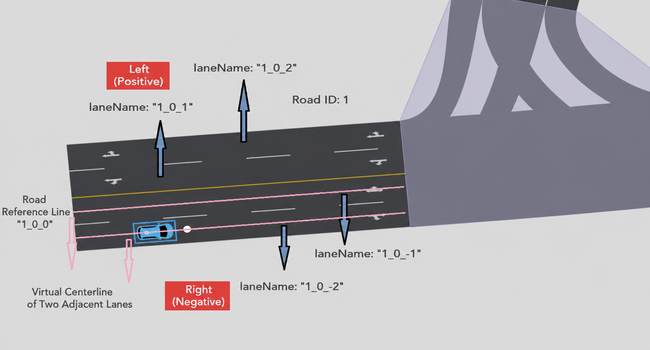

(3) Lane Identifier: The laneName in the HD Map provides a unique identifier for each lane, enabling precise lane queries and localization by combining the road ID, section index, and lane ID.

  • Identifier format: $roadId_sectionIndex_laneId

  • $roadId: The unique ID of the road.

  • _sectionIndex: The index of a specific section within the road, used to identify different parts of the road.

  • _laneId: The lane number, unique within each section.

Examples:

  • "1_0_-1" refers to the first lane to the right of section index 0 on road ID 1 (negative sign = right side).

  • "1_0_2" refers to the second lane to the left of the same section (positive sign = left side).

(4) Coordinate Conversion: Converting between LocalENU (x, y, z) and [s, t] coordinates.

  1. [s, t] coordinates in the Road reference line system

  2. Definition: Uses the road reference line as the baseline. t is negative to the right of the reference line, positive to the left.

  3. Example: P(-51.5, -73.5) corresponds to [s, t] = (7, -5.25) in the Road 1 reference line system.

  4. [s, t] coordinates in the Lane virtual centerline system

  5. Definition: Uses the lane virtual centerline as the baseline. t is negative to the right, positive to the left. When the Ego Vehicle travels along the lane virtual centerline, t is always 0.

  6. Example: P(-51.5, -73.5) corresponds to [s, t] = (7, 0) for Lane "1_0_-2" and [s, t] = (7, -3.5) for Lane "1_0_-1".

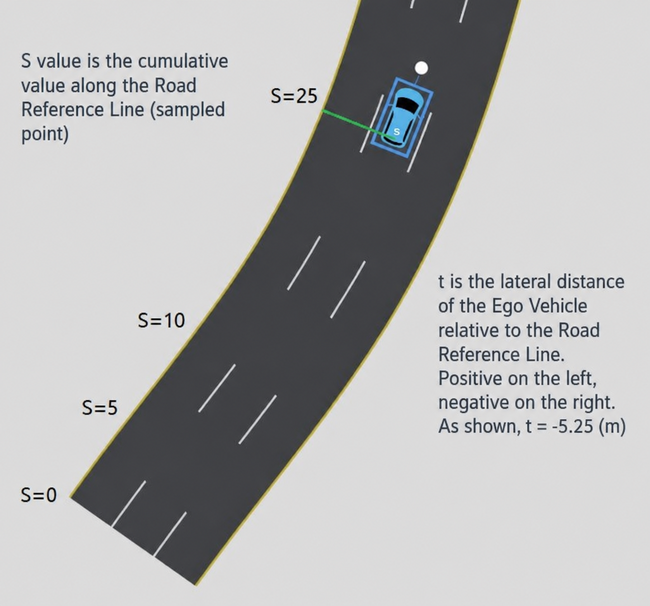

(5) Locating Obstacles: Using [s, t] coordinates in the Road reference line system, you can determine the lateral distance (t) and longitudinal distance (s) of an obstacle relative to the Ego Vehicle's direction of travel.

  • Definition: Uses the road reference line as the baseline. t is negative to the right, positive to the left. S is the cumulative distance along the road reference line.

  • Example: The Ego Vehicle's ST coordinate relative to the road is (25, -5.25).

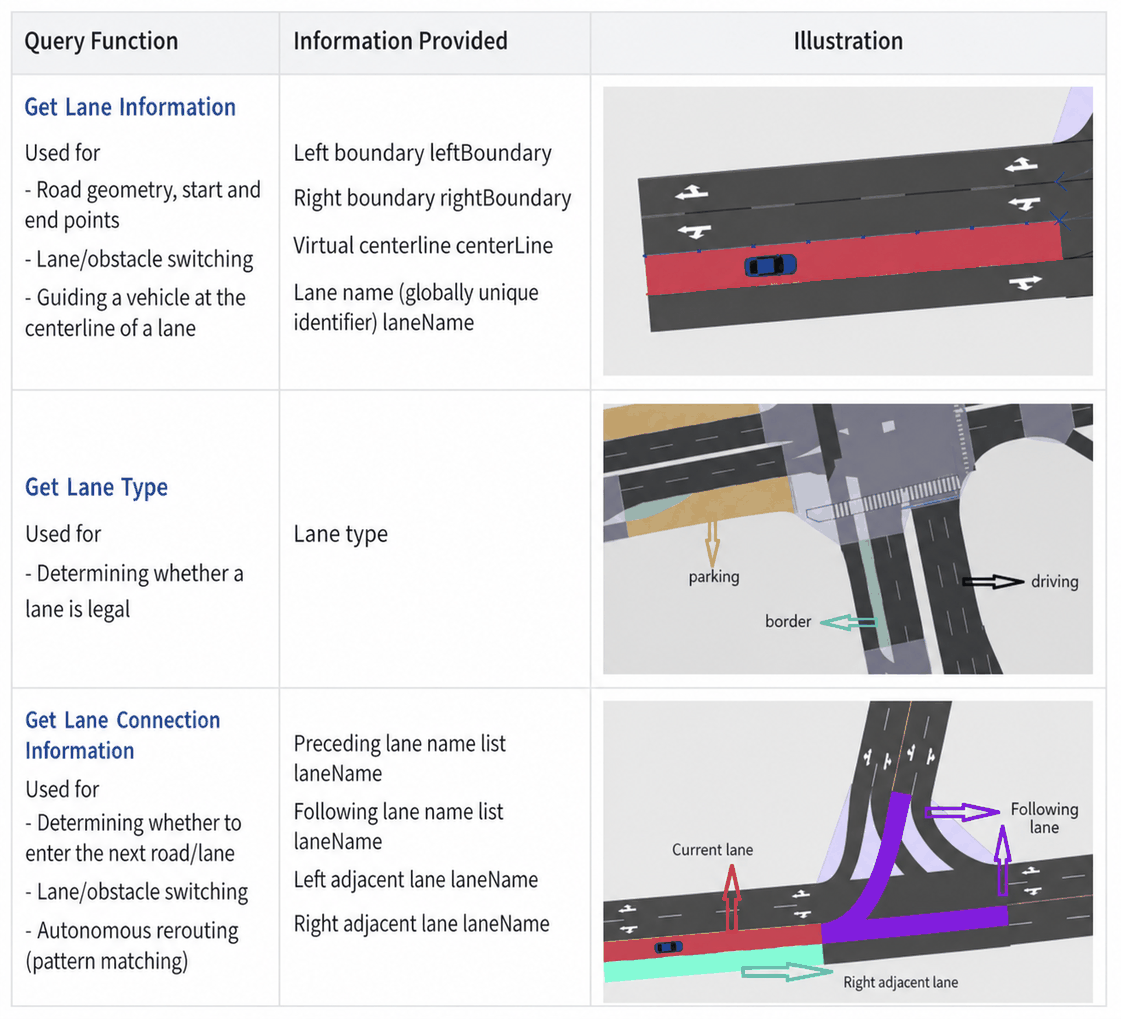

4.1.2 Global Query

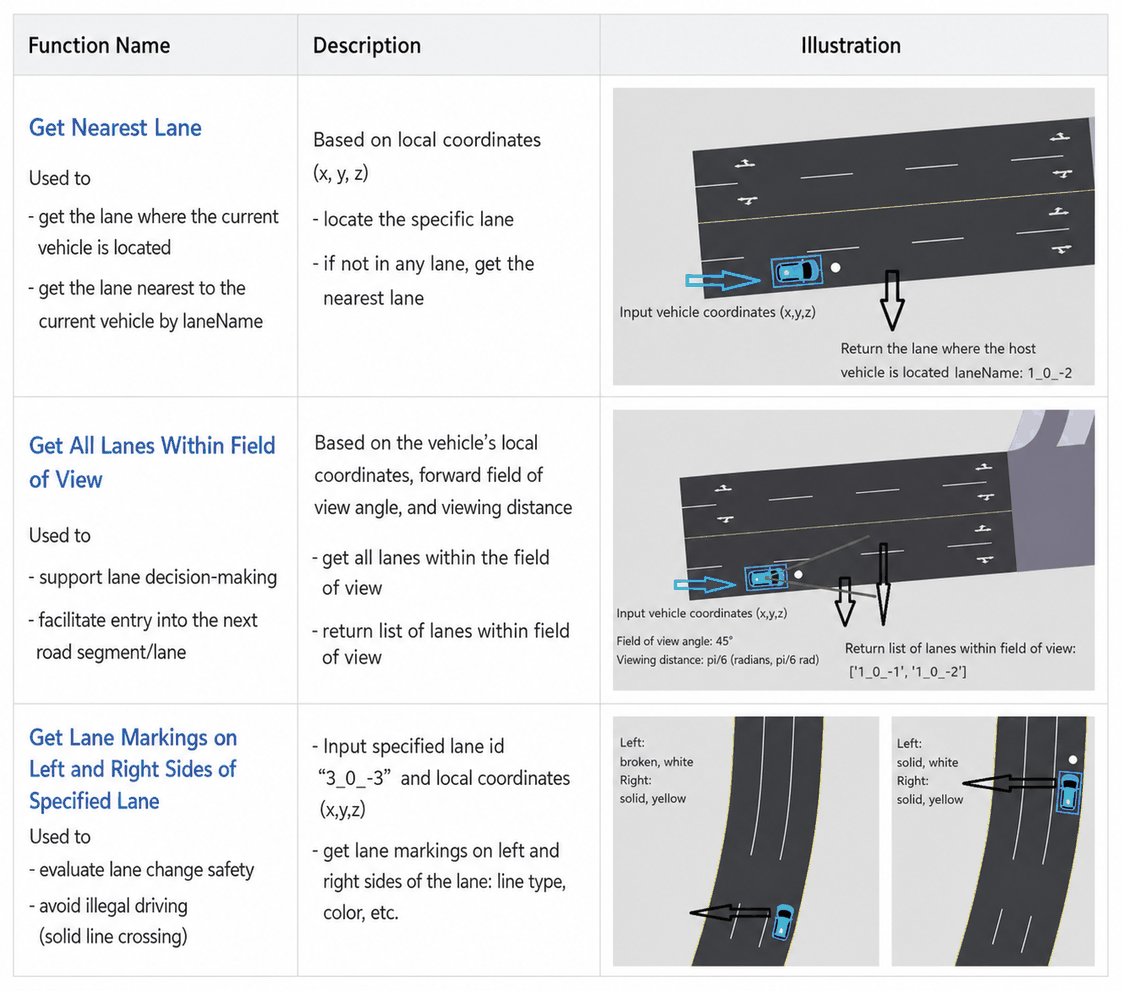

4.1.3 Localization

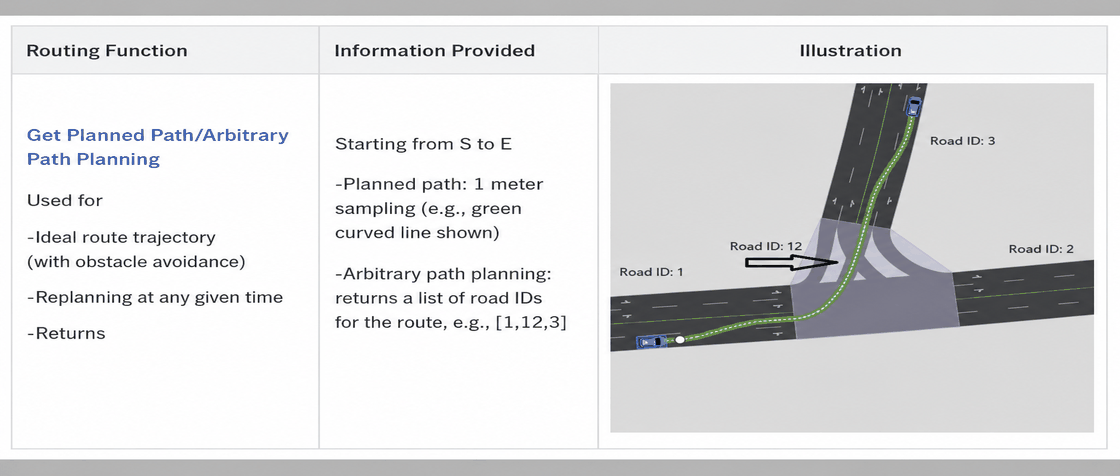

4.1.4 Routing
