Automated Use Case Creation and Execution

1. Prerequisites

SimOne provides a RESTful API that supports programmatic control of the platform via HTTP requests. This document describes how to use this API to automate Use Case creation and execution — designed for unattended batch testing: automatically create multiple tasks, then retrieve the results after all tasks complete.

  • Designed for unattended scenarios: automatically create multiple tasks, then retrieve results after all tasks complete.

  • Sample script: runSimOneCase.py

Dependencies

Install the following packages before running the script:

pip install requests

📝 If using SimOne's built-in Python interpreter ([SimOne installation directory]/Tools/python36/), use the corresponding pip version to install packages.

2. Usage

2.1 Import Required Libraries

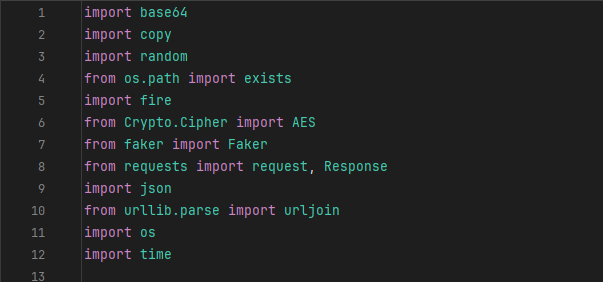

Add the following imports at the top of the script:

import base64
import copy
import random
from os.path import exists
import fire
from Crypto.Cipher import AES
from faker import Faker
from requests import request, Response
import json
from urllib.parse import urljoin
import os
import time
Library Purpose
fire Command-line argument parsing
requests Sends HTTP requests to call the SimOne RESTful API
Crypto.Cipher.AES AES encryption (for password transmission)
urllib.parse.urljoin Constructs API URLs

2.2 Configure the API Connection and Login Mode

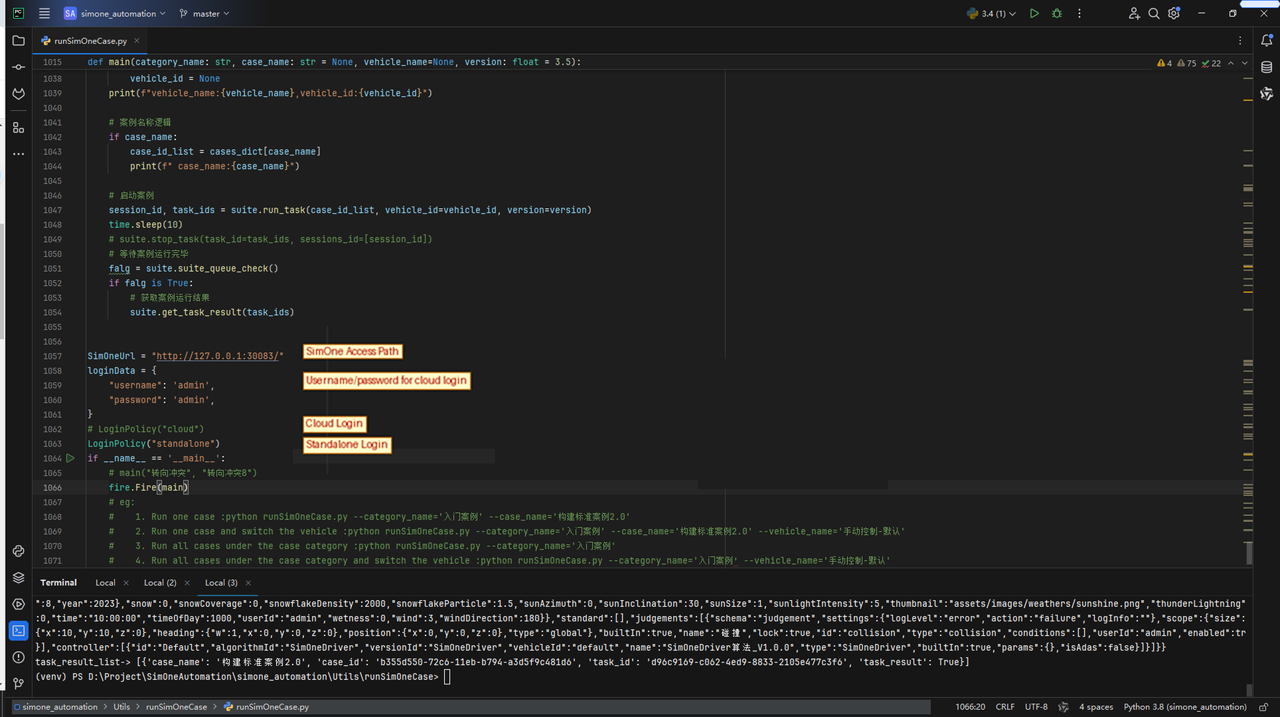

Set SimOneUrl to the actual SimOne service address, and select the login method based on your deployment:

SimOneUrl = 'http://127.0.0.1:30083/'  # SimOne service address
loginData = {
    'username': 'admin',
    'password': 'admin',
}
# LoginPolicy("cloud")       # Cloud deployment login
LoginPolicy("standalone")    # Standalone deployment login
  • Standalone deployment: Call LoginPolicy("standalone") to log in with a username and password.
  • Cloud deployment: Call LoginPolicy("cloud") to switch to cloud authentication.
  • Replace SimOneUrl with your actual service address, e.g., http://10.x.x.x:30083/.

2.3 Connect to SimOne via the API

2.3.1 Command-Line Execution

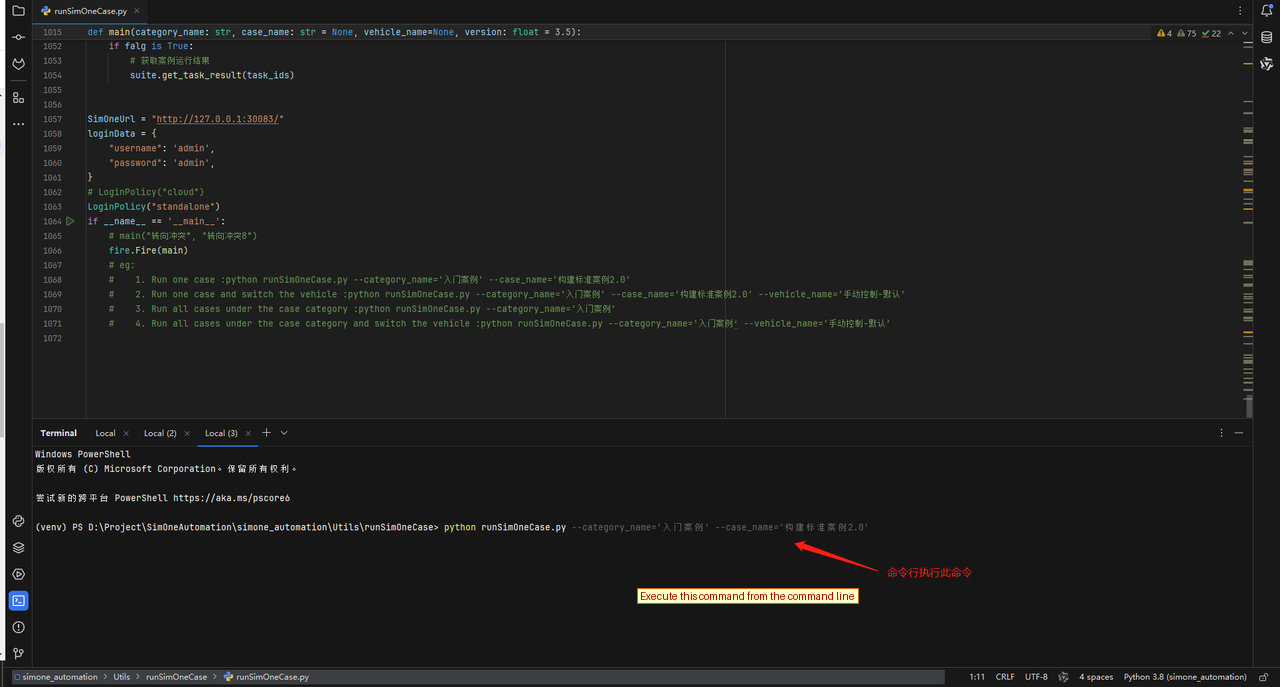

The script uses fire.Fire(main) to parse command-line arguments. Four execution modes are supported:

  1. Run a single Use Case: python xxx.py --category_name='Starter Use Cases' --case_name='Build Standard Use Case 2.0'

  2. Run a single Use Case with a specific Ego Vehicle: python xxx.py --category_name='Starter Use Cases' --case_name='Build Standard Use Case 2.0' --vehicle_name='Manual Control - Default'

  3. Run all Use Cases in a library: python xxx.py --category_name='Starter Use Cases'

  4. Run all Use Cases in a library with a specific Ego Vehicle: python xxx.py --category_name='Starter Use Cases' --vehicle_name='Manual Control - Default'

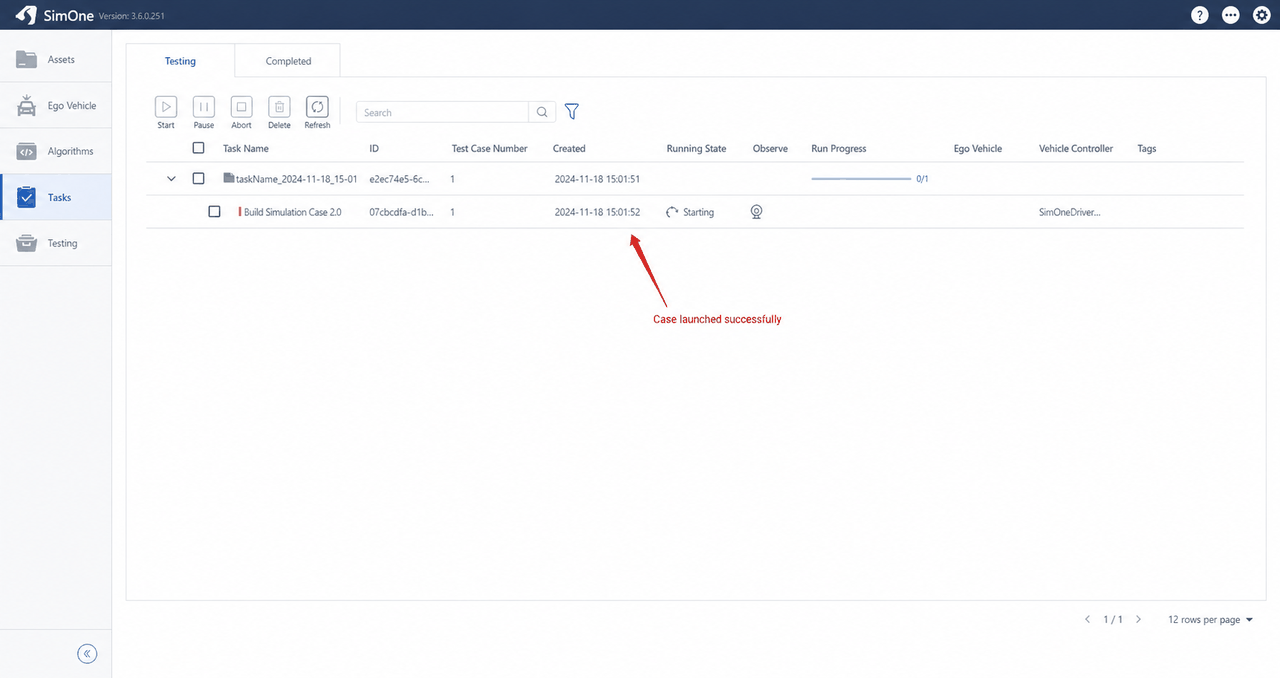

After execution, confirm that the tasks started successfully on the SimOne platform under Task Management > In Progress.

2.4 Command-Line Output

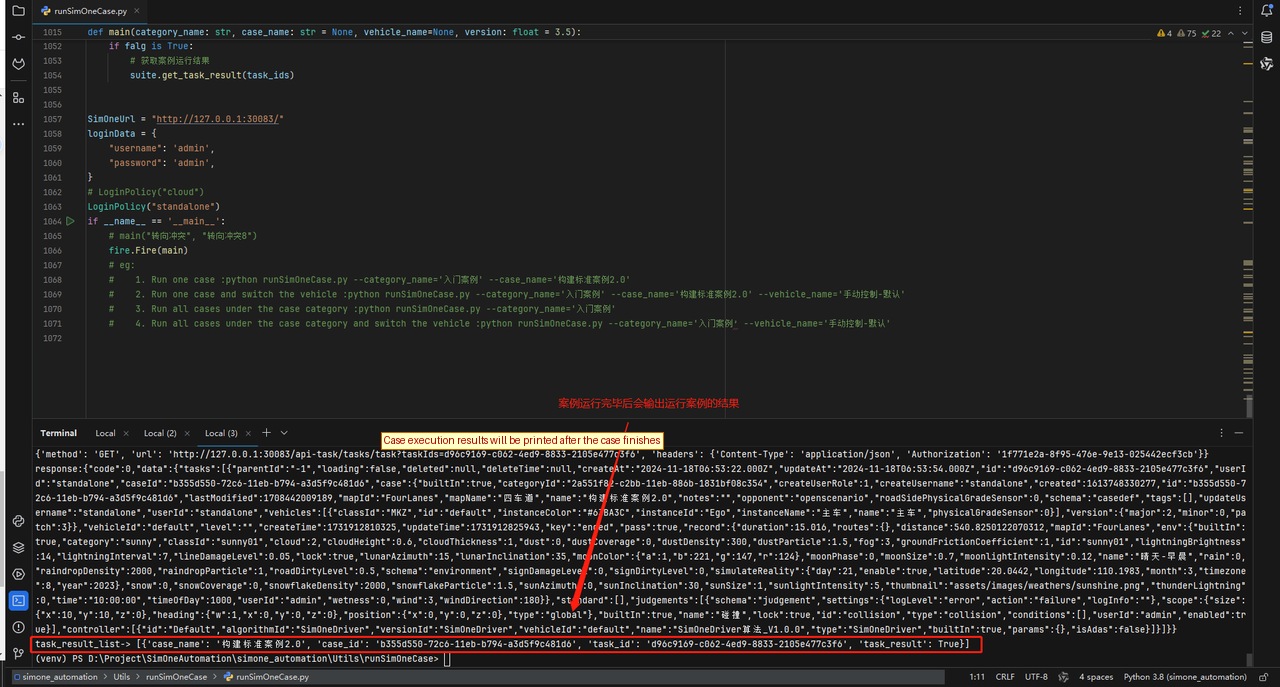

After the Use Cases finish, the script polls the task status (via GET /api-task/tasks/task) and outputs the result list:

task_result_list -> [{'case_name': 'Build Standard Use Case 2.0', 'case_id': 'b355d550-...', 'task_id': 'd96c9169-...', 'task_result': True}]
Field Description
case_name Use Case name
case_id Use Case ID
task_id Task ID
task_result Result (True = pass, False = fail)
